Aprosoft aStat

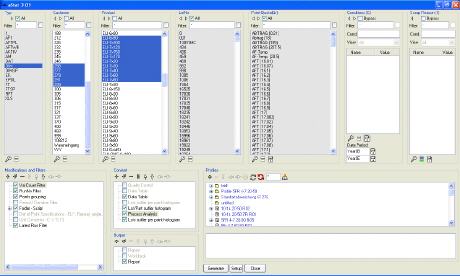

aStat - Initial Screen
aStat generates reports by one click
- Show, search, reporting and evaluation of ERP, production and measurement data in an ingenious way
- Displaying / hiding of the displayable fields
- The order can be freely defined
- Inside one column the selection can be done according to a key or manually
- The subordinate columns are directly updated according to this selection
- Selection of any number and complexity of filters
- Selection of any number of report contents
- Selection and combination of different report formats for charts and tables
| Part / point matrix | Overview of scrap, lot number and part number |
| Lot / point outlier histogram | Overview of scrap with upper and lower tolerance and their violation |
| Point table | Summary of all measured points with tolerances and statistic values (e.g Cpk) |
| Process analysis | Graphic process analysis |
| Process analysis QC | Process analysis with quality control |
| Data table | Table overview |
| ... | Alongside all other STATISTICA results can be integrated with plug-ins |
All preselections, filters and contents are saved to a profile.
The whole setting can now be called up wit one mouse click:
aStat displays the data according to the preselection and generates - with one mouse click - a report according to the definition.
- APROPO shuffler periodically generates aStat 3.0 reports and distributs them by e-mail.
- Depending on statistic conditions, e.g. exceedance of a defined limit value an e-mail is sent
- The measurement and production data are beeing imported to our tool from any source (Q-DAS, XLS, customer databases)
- APROPO shuffler imports the data from the measuring points - automatically in the background
- In case of manual data collection from the production APROPO XLS for MS-EXCEL supports the data import to aStat 3.0
- aStat 3.0 is an FDA validated sample solution (http://www.statsoft.de/anwenderberichte/admedes.pdf )
- Top 20 of Innovation Prize IT 2009 awarded by the Initiative Mittelstand under the patronage of the Bundesministerium für Wirtschaft und Technologie (Ministry of Economy and Technology)
